What is an Authorization Server?

The Authorization Server is the central component in the OAuth dance. It is the most critical and the most complex. It’s the trusted middleman making sure users can share their details without exposing their password to the client or the protected resource. As much complexity as possible is moved to the Authorization Server so clients and protected resources can be as simple as possible.

The Authorization Server is responsible for the following:

• Registering clients.
• Authenticating both the user and the client.
• Authorizing clients and making sure the correct permissions are delegated from the user to the client.
• Dispensing Authorization Codes, Access Tokens and Refresh Tokens to clients.
• Introspecting tokens on behalf of its protected resources, and revoking them on behalf of clients and users.
• Publishing its own configuration so clients can find all of the above.

Our Example

Let’s reuse the same example that we have been using from the start.

• Resource Owner: you 🫵, the owner of the Facebook account.
• Client: Strava, the running app that wants to post your workout to Facebook on your behalf.
• Protected Resource: Facebook, the API that holds your account.
• Authorization Server: the component this post is about. It is the one that registers Strava, authenticates you, asks whether you are happy for Strava to post on your behalf, and hands Strava the tokens that Facebook will accept.

In the real world Facebook runs both the protected resource and the Authorization Server. These are two separate roles, that can be in the same program. The company Facebook has a Facebook branded Authorization Server and a private resource which is the actual social media website. For the rest of this post we only care about Facebook the Authorization Server.

The Whole Flow At A Glance

Below is every step of an OAuth flow from beginning to end, seen from inside the Authorization Server, watching what it stores and what it checks at each point.

Client Registration

We will discuss the two most used methods to register a client.

• Static Client Registration.
• Dynamic Client Registration.

Static Client Registration

So far, in previous blog posts, we have been statically registering the OAuth clients in the Authorization Server before the OAuth flow starts. This results in the Authorization Server having a list of pre-approved clients that can authenticate and have user authorizations delegated to them.

Typically an administrator is required to manually register clients to the Authorization Server before any flow can be started.

An Authorization Server asks an administrator for a handful of details before it will register a client. Those details are what let the client authenticate itself, request an Authorization Code, and exchange that code for an Access Token, which is how the user’s authorizations end up delegated to the client.

Here are the details that the Authorization Server asks an administrator to statically register a client:

1. Client type: As discussed, a client can be confidential or public.

   • If the administrator chooses to register a confidential client, then the Authorization Server will generate a client ID and a client secret value. For example:

     client_id: strava
     client_secret: 8f3e1c02-a9b7-4d6a-9c8b-1e2f4a5d6c7b

   • If the administrator chooses to register a public client then only a client ID value will be generated by the Authorization Server and no client secret. For example:

     client_id: strava

   The client ID and client secret values can be used by the client to authenticate itself when requesting an Access Token from the Authorization Server.

2. Redirect URIs: It is necessary to provide redirect URIs for a client. The Authorization Server needs to know where to redirect the user after the user has logged in to the Authorization Server and delegated authorizations to the client. The user should then be redirected to the client with the Authorization Code.

3. Grant types: OAuth flows that the client is allowed to use. Currently, in this series we have discussed the Implicit Grant Type and the Authorization Code Grant Type. We will discuss more flows in a future blog post.

4. Scopes: The scopes that the client is allowed to ask for. The Authorization Server will refuse any request for a scope outside this list, and it uses this list to tell the user what authorizations they are being asked to approve. For example, our Strava application needs the post scope to make Facebook posts on the user’s behalf.

5. Audience: In most cases, specifying an Audience is optional. The Audience value can be thought of in contrast to the Scope value. The Scope value defines what the client can do. The Audience value defines which protected resource the Access Token is meant for. In our Strava/Facebook example the Audience value would be https://api.facebook.com. This is because the Strava client is only ever interested in connecting to Facebook, and no other protected resource.

Static client registration works well for our Strava/Facebook example, since there is exactly one Strava app, and it only ever needs to be registered once.

The client ID, client secret, and redirect URIs belong to the Strava application itself, so they are identical no matter who is logging in. What is unique to each individual user is everything the Authorization Server produces during a flow:

• Consent screen
• Authorization Code
• Access Token
• Refresh Token

These per-user values are all issued against the singular Strava client registered to the Authorization Server.

Dynamic Client Registration

Static Client Registration is the default, but sometimes it can be quite inconvenient. Let’s take Email as another example. A mail provider’s Authorization Server has to let outside applications access a user’s inbox on the user’s behalf, and unlike Strava, there’s no single client app doing that. There could be multiple apps that would want access to the user’s mailbox. A user might connect with Thunderbird, Apple Mail, Outlook, or any of dozens of other email clients, with new ones showing up all the time.

Nobody wants an administrator manually registering every email client that might ever try to connect. That doesn’t scale.

The solution to the above scalability problem is Dynamic Client Registration. It is a way for clients to dynamically register themselves on an Authorization Server that accepts this protocol. Without the need for an administrator to log in to the Authorization Server and manually enter every client.

Dynamic Client Registration is done by the Authorization Server which exposes a registration endpoint, normally called /register. The actual path is not fixed by the spec. A client discovers it from the Authorization Server’s metadata document, published under the registration_endpoint field. The client itself sends a request to this endpoint describing what it needs, instead of an administrator filling out a form on the Authorization Server to statically register a client.

POST /register HTTP/1.1
Host: auth-server
Content-Type: application/json
Accept: application/json

{
  "client_name": "Superhuman",
  "redirect_uris": ["https://superhuman.com/callback"],
  "grant_types": ["authorization_code"],
  "response_types": ["code"],
  "token_endpoint_auth_method": "client_secret_basic",
  "scope": "read_email"
}

For example, Superhuman syncs a user’s mail through its own backend servers rather than reading it directly on the user’s device, so it registers as a confidential client. Note the token_endpoint_auth_method of client_secret_basic, which tells the Authorization Server that this client intends to authenticate itself with a secret, in the same Authorization: Basic header the client used when requesting an Access Token. The Authorization Server responds with a client ID and, since this is a confidential client, a client secret.

Here is a successful response from the Authorization Server following a dynamic client registration request:

HTTP/1.1 201 Created
Content-Type: application/json
Cache-Control: no-store

{
  "client_id": "5b6f2a91-8c3d-4e7f-a1b2-9d0e6f4c8a72",
  "client_secret": "f4a7c9e2-1d6b-4a8f-9c3e-7b2d5f8a0c14",
  "client_id_issued_at": 1755561543,
  "client_secret_expires_at": 0,
  "client_name": "Superhuman",
  "redirect_uris": ["https://superhuman.com/callback"],
  "grant_types": ["authorization_code"],
  "response_types": ["code"],
  "token_endpoint_auth_method": "client_secret_basic",
  "scope": "read_email"
}

Whenever a client secret is issued, the Authorization Server must also return client_secret_expires_at. A value of 0 means the secret never expires. Any other value is a timestamp after which the client has to register again or rotate its secret.

The client can then use this client ID (and client secret, if it registered as confidential) to further communicate with the Authorization Server, for example, to request an Access Token.

Authorization Server Metadata

By now we have named a fair number of endpoints across this entire blog series: /authorize, /token, /register, and the /introspect endpoint from the Protected Resource post. None of those paths are fixed by the spec. They are conventions, and every Authorization Server is free to pick its own.

There would be a problem if every client had to be told each path by hand. The solution is a metadata document, defined in RFC 8414, that the Authorization Server publishes at a well-known location:

GET /.well-known/oauth-authorization-server HTTP/1.1
Host: auth-server
Accept: application/json

The Authorization Server answers with a plain JSON document describing itself:

{
  "issuer": "https://auth-server",
  "authorization_endpoint": "https://auth-server/authorize",
  "token_endpoint": "https://auth-server/token",
  "registration_endpoint": "https://auth-server/register",
  "introspection_endpoint": "https://auth-server/introspect",
  "revocation_endpoint": "https://auth-server/revoke",
  "scopes_supported": ["post", "read_email"],
  "response_types_supported": ["code"],
  "grant_types_supported": ["authorization_code", "refresh_token"],
  "token_endpoint_auth_methods_supported": ["client_secret_basic", "none"],
  "code_challenge_methods_supported": ["S256"]
}

Everything a client needs is in there. Where to send the user, where to exchange the code, where to register itself, which scopes exist, and which grant types the server supports.

A client only has to be configured with one value, the issuer URL, and it can discover the rest. The client builds the metadata URL out of the issuer it was given, so a client configured with issuer https://auth-server fetches https://auth-server/.well-known/oauth-authorization-server.

When the response comes back, the response’s issuer field must be identical to the issuer the client started with: https://auth-server. Every endpoint inside the metadata response from the Authorization Server is an absolute URL that can point anywhere. A document served from auth-server that claimed "issuer": "https://evil-server" would be one server speaking on behalf of another. A client that skipped the check would happily send the user, the Authorization Code, and its client secret to whatever token_endpoint that document listed.

The Authorization Endpoint

At this stage we will assume that the client is registered on the Authorization Server and an OAuth flow has started. Keeping with our Strava/Facebook example: the user has accessed Strava, and is now redirected to the Authorization Server.

The Authorization Server exposes an endpoint (typically named /authorize) to accept these redirected users. The redirect flow was discussed in the OAuth Client deep-dive blog, where an example was given using the /authorize endpoint.

Before the Authorization Server shows the user anything, it validates the incoming request against what was stored during client registration:

• Is the client_id a client it knows about?
• Does the redirect_uri exactly match one of the redirect URIs registered for that client?
• Is the requested response_type (code) correspond to a grant type the client is allowed to use?
• Are the requested scopes a subset of the scopes the client registered?

The redirect_uri check has to happen first, and it has to be an exact string match. If the client_id is unknown or the redirect_uri doesn’t match, the Authorization Server must not redirect the error back. Doing so would turn it into an open redirector for an attacker. It has to render the error on its own page instead. For every other failure, the error is returned to the registered redirect URI as an error query parameter, along with the state the client sent in. The client needs that state back to tie the failure to the session that started it, exactly as it would on success.

Once the request is valid, the user is prompted to authenticate. Although there are stages in OAuth 2.0 that require the user to be authenticated, the spec deliberately says nothing about how that should be done, or how the client would learn who the user is. That gap is what OIDC fills by sitting on top of OAuth 2.0, which will be discussed in another blog post.

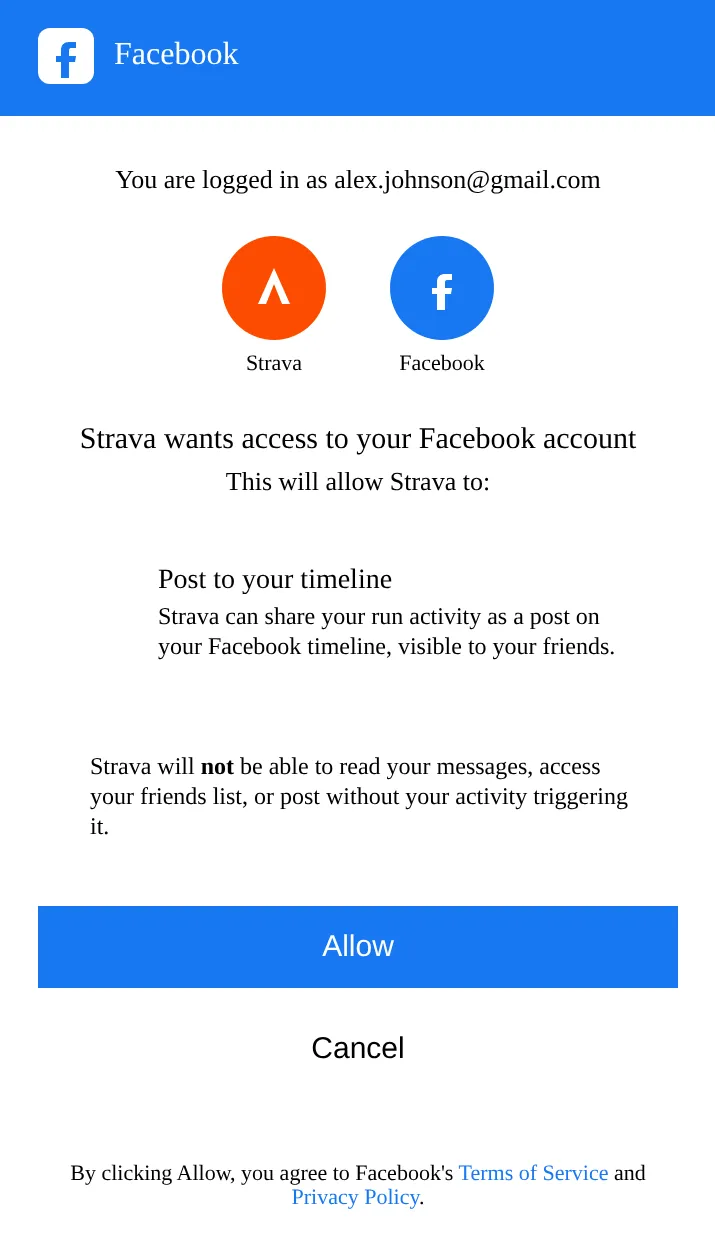

The Consent Screen

The entire OAuth flow exists to ask one question: is the user comfortable letting Strava post to Facebook on their behalf? This is typically what that screen looks like after the client intially redirects the user to the Authorization Server:

Once the user approves this message, the user will officially delegate their authorizations to Strava. In this case, Strava will now have permissions to make a Facebook post on the user’s behalf.

After approval the Authorization Server will generate an “Authorization Code” for Strava. This will be included in the response when the user is redirected back to Strava.

Here is an example of an HTTP call with the user getting redirected back to Strava with the Authorization Code:

HTTP/1.1 302 Found
Location: https://strava.com/callback?code=8V1pr0rJ&state=af0ifjsldkj
Vary: Accept
Content-Type: text/html; charset=utf-8
Content-Length: 0
Connection: keep-alive

Notice the state parameter coming back alongside the code. The Authorization Server never interprets this value. It simply echoes back, byte for byte, whatever the client sent on the way in, so that the client can compare it against what it stored and reject the callback if it doesn’t match. An Authorization Server that silently drops state breaks the client’s only defence against the CSRF attack we simulated in the previous post.

The Authorization Code is saved in the Authorization Server’s database. This is because the next stage in the OAuth dance is for Strava to request an Access Token. The Authorization Server must compare the saved Authorization Code to the one that Strava will send (along with the client ID and secret) when requesting an Access Token.

Concretely, at this point the Authorization Server is holding two records. The first record was written when the client was registered, and outlives every OAuth flow:

{
  "client_id": "strava",
  "client_secret": "8f3e1c02-a9b7-4d6a-9c8b-1e2f4a5d6c7b",
  "redirect_uris": ["https://strava.com/callback"],
  "grant_types": ["authorization_code", "refresh_token"],
  "scopes": ["post"]
}

The second record was written just now, when the user clicked Allow, and belongs to this one flow only:

{
  "code": "8V1pr0rJ",
  "client_id": "strava",
  "sub": "hamza",
  "scope": "post",
  "redirect_uri": "https://strava.com/callback",
  "code_challenge": "E9Melhoa2OwvFrEMTJguCHaoeK1t8URWbuGJSstw-cM",
  "code_challenge_method": "S256",
  "expires_at": 1755562143,
  "used": false
}

The code_challenge and code_challenge_method in that record belong to PKCE, which we cover further down. Ignore them for now.

We will discuss the token endpoint next, where the client will request an Access Token. Every check the token endpoint is about to run is a comparison against those two records.

The saved Authorization Code is short-lived and single-use. The spec recommends a maximum lifetime of ten minutes, and once a code has been exchanged for an Access Token the Authorization Server must reject any further attempt to use it. If a code that has already been redeemed shows up again, that is a strong signal it leaked, and the Authorization Server should revoke the Access Token it previously issued for that code.

The Token Endpoint

At this stage we can assume that the user has delegated their authorizations to Strava. This means that Strava is now able to make a Facebook post on the user’s behalf. Strava has an Authorization Code that was received from the Authorization Server when the user was redirected back, and now Strava needs an Access Token.

We already saw what the client needs to do in order to request an Access Token. Let’s take a look at what happens from the perspective of the Authorization Server.

As mentioned, in order for the client to request an Access Token, it typically needs to make a call to the /token endpoint. Here is an example of an incoming HTTP request that the Authorization Server needs to deal with:

POST /token HTTP/1.1
Host: auth-server
Accept: application/json
Content-type: application/x-www-form-urlencoded
Authorization: Basic c3RyYXZhOjhmM2UxYzAyLWE5YjctNGQ2YS05YzhiLTFlMmY0YTVkNmM3Yg==

grant_type=authorization_code&redirect_uri=https%3A%2F%2Fstrava.com%2Fcallback&code=8V1pr0rJ

The Authorization: Basic header here is just strava:8f3e1c02-a9b7-4d6a-9c8b-1e2f4a5d6c7b base64-encoded, which is the client ID and client secret the Authorization Server handed out at registration. Before it issues anything, the Authorization Server checks all of the following:

• The client ID and client secret are valid.
• The Authorization Code (code) matches an Authorization Code it saved earlier, and that code has not expired or already been used.
• The code was issued to this same client. A code handed to Strava cannot be redeemed by any other client, even a correctly authenticated one.
• The redirect_uri matches the one used in the original /authorize request.

There is one more check that belongs in that list. The check for PKCE. We get to it further down.

If everything checks out, the Authorization Server marks the code as used and responds with an Access Token:

HTTP/1.1 200 OK
Date: Fri, 31 Jul 2026 21:19:03 GMT
Content-type: application/json
Cache-Control: no-store

{
  "access_token": "987tghjkiu6trfghjuytrghj",
  "token_type": "Bearer",
  "expires_in": 3600,
  "refresh_token": "j2r3oj32r23rmasd98uhjrk2o3i",
  "scope": "post"
}

Cache-Control: no-store is required on every token response. Without it a browser sitting in the network path is free to keep a copy of the Access Token on disk.

The scope is echoed back because the Authorization Server is allowed to grant less than the client asked for. If the user unticked a permission on the consent screen, this is where the client finds out.

Notice how expires_in is only an hour. It is best practice to give Access Tokens short lifespans.

Issuing Refresh Tokens

We met the Refresh Token from the client’s side in Part 2. When the Access Token dies, the client would send the Refresh Token to the /token endpoint from the Authorization Server and get a new one. Let’s look at this from the perspective of the Authorization Server now.

An Access Token is deliberately short-lived. This is why the protected resource checks the exp on every single request, and an hour is a typical lifetime of an Access Token. Without Refresh Tokens the user would be bounced back to the consent screen every hour, which nobody would tolerate. The Refresh Token is the Authorization Server’s record that this user already consented, so it can mint new Access Tokens without asking again.

Here is the client coming back to the Authorization Server an hour later, when the Access Token expires, and using a Refresh Token to request a new Access Token:

POST /token HTTP/1.1
Host: auth-server
Accept: application/json
Content-type: application/x-www-form-urlencoded
Authorization: Basic c3RyYXZhOjhmM2UxYzAyLWE5YjctNGQ2YS05YzhiLTFlMmY0YTVkNmM3Yg==

grant_type=refresh_token&refresh_token=j2r3oj32r23rmasd98uhjrk2o3i&scope=post

The Authorization Server runs a very similar set of checks to the ones it ran on the Authorization Code:

• The Refresh Token exists, has not expired, and has not been revoked.
• It was issued to this same client. Strava cannot refresh a token that belongs to somebody else’s client.
• The requested scope is the same as, or narrower than, what the user originally consented to. A client can ask for less on a refresh, never more.
• The underlying consent is still standing. If the user has since disconnected Strava from their Facebook account, the Refresh Token dies with it.

The Authorization Server issues a fresh Access Token if all of the above is still true.

Here is an example successful response from the Authorization Server:

HTTP/1.1 200 OK
Content-type: application/json
Cache-Control: no-store

{
  "access_token": "IqTnLQKcSY62klAuNTVevPdyEnbY82PB",
  "token_type": "Bearer",
  "expires_in": 3600,
  "refresh_token": "8kNq2vXpL4mZ7wRt1yHb3cJd6fGs0aVe",
  "scope": "post"
}

Notice that the refresh_token came back different from the one that was sent. This is called refresh token rotation. The old Refresh Token is invalidated the moment it is used, and the client is expected to store the new one.

The detection works exactly like the Authorization Code replay we described earlier. If a Refresh Token that has already been rotated away shows up again, there are only two possible explanations:

1. The client failed to store the new one.
2. Somebody stole the old one.

The Authorization Server cannot tell which, so it assumes the worst and revokes the entire token family, every Access Token and Refresh Token descended from that original consent. The legitimate client is forced back through the full flow, and the hacker gets nothing.

Token Revocation

Because Refresh Tokens can outlive the browser session by weeks, the Authorization Server also needs a way to throw them away on demand. The revocation_endpoint in the metadata document is how a client does that, handing back a token it no longer needs, for example when the user logs out of the client. The Access Token dies, and the next introspection call from the protected resource comes back with active: false.

PKCE

Since the start of the blog series we assumed that our OAuth client, Strava, is a confidential client. What if it were a public client? If Strava just has a client ID with no client secret, how does Strava successfully authenticate to the Authorization Server and grab an Access Token?

Strictly speaking, the public client is still able to grab an Access Token from the Authorization Server without authentication. The OAuth specification allows for that.

Even with the Authorization Server accepting unauthenticated requests from the client to get an Access Token, there is still some level of safety.

Even though these safety primitives exist for public clients, an attacker can still get through. The solution is PKCE (Proof Key for Code Exchange)!

Let’s walk through a concrete example where public clients can be compromised if PKCE is not used:

Authorization Code Interception

Let’s revise a few terms, so the example is clear:

• Redirect URI: the full address the Authorization Server sends the user back to once they have approved, with the Authorization Code attached. We have been using https://strava.com/callback all post.

• Private-use URI Scheme: a private-use scheme is what a single app in your operating system would claim for itself, so that the operating system launches that app instead. Unlike https which is a public scheme. For this example the scheme used for private use will be com.strava.app:/callback. This does not need to be registered to the Authorization Server since it is only meant to help the operating system route calls to specific apps.

• Callback: this is the path at the end, /callback. The name is a convention and nothing more. /oauth2redirect would do the same job.

Since the definitions are now clear, let’s set the scene for the example:

We will assume that Strava is a public mobile app, and therefore a public client. A mobile app has no web server to receive a redirect, so instead it claims a private-use URI scheme with the operating system: com.strava.app:/callback

Nothing stops a second app on the same device from claiming com.strava.app too, and when two apps claim one scheme, the operating system simply picks one.

1. The user accesses Strava and gets redirected to the Authorization Server.
2. The user logs in to the Authorization Server.
3. The user gets redirected back to com.strava.app:/callback, but the operating system hands that redirect to the malicious app instead. Strava sits on a spinner, stuck at the prelogin screen, because it never received the Authorization Code.
4. The user simply refreshes Strava to start the OAuth flow again. But now the malicious app is holding a legitimate Authorization Code!
5. The malicious app sends a POST request to the Authorization Server to get an Access Token.

Authorization Code Injection

1. The attacker somehow obtains a code issued to the victim for this client, just as in the previous example.
2. The attacker, in their own browser, starts a normal login at the client. They get a legitimate authorization request and their own state.
3. At the redirect step, instead of letting their own code come back, they replace the code parameter with the victim’s, keeping their own state intact.
4. The client sees a valid state for its own session, so it proceeds. It POSTs to the token endpoint with its client_secret and the victim’s code.
5. The Authorization Server validates the secret (correct), validates the code (correct, issued to this client), and returns the victim’s tokens.
6. The client establishes a session, in the attacker’s browser, for the victim’s account.

PKCE flow

The solution for an authorization code interception attack, and an authorization code injection attack is PKCE (Proof Key for Code Exchange) defined in RFC 7636.

A public client has no secret at all, and a confidential client’s secret only proves which client is redeeming a code, never which authorization request that code came from. To fix this problem, each client invents a brand new secret for every single flow, and proves it knows that secret when it redeems the Authorization Code.

The client (whether public or confidential) would generate a random string. The client will then be tasked to prove it knows that randomly generated string when it receives the Authorization Code.

Let’s see this in action:

1. The user accesses the client.
2. Before redirecting the user to the Authorization Server, the client generates a large random string called the code_verifier, and keeps it to itself.
3. It hashes that value with SHA-256 and base64url-encodes the result. That is the code_challenge.
4. The user is redirected to the Authorization Server and the client sends only the code_challenge in the same HTTP request. The code_verifier stays with the client and never travels the front channel. It stays within the user’s device for now.
5. The user authenticates with the Authorization Server and approves the client.
6. The Authorization Server stores the code_challenge next to the Authorization Code it generates.
7. The Authorization Server redirects the user back to the client with the newly generated Authorization Code, exactly as before. The code_challenge is not sent back. It stays in the Authorization Server’s record.
8. The client takes the Authorization Code and directly requests an Access Token. This time sending the code_verifier.
9. The Authorization Server hashes the code_verifier with SHA-256 and base64url-encodes it, just as the client initially did in step 3. It then compares the result to the stored code_challenge. If there is a match then it will generate an Access Token and respond back to the client with the Access Token.

In step 4 above, the /authorize endpoint in the Authorization Server picks up two new parameters:

GET /authorize?response_type=code&scope=post&client_id=strava-mobile&redirect_uri=com.strava.app%3A%2Fcallback&state=af0ifjsldkj&code_challenge=E9Melhoa2OwvFrEMTJguCHaoeK1t8URWbuGJSstw-cM&code_challenge_method=S256 HTTP/1.1
Host: auth-server

The Authorization Server files that code_challenge away with the code. When the client returns to the token endpoint, it proves itself by handing over the original value, as described in step 8:

POST /token HTTP/1.1
Host: auth-server
Content-type: application/x-www-form-urlencoded

grant_type=authorization_code&redirect_uri=com.strava.app%3A%2Fcallback&client_id=strava-mobile&code=8V1pr0rJ&code_verifier=dBjftJeZ4CVP-mB92K27uhbUJU1p1r_wW1gFWFOEjXk

Note that there is no Authorization: Basic header here, because a public client has nothing to put in it. The code_verifier is doing that job instead.

The Authorization Server computes BASE64URL(SHA256(code_verifier)), compares it against the stored code_challenge, and only issues a token if they match.

Now if we go through our attack examples again with PKCE, exactly as before, we will notice that the Authorization Code by itself is useless. To redeem it the attacker also needs the code_verifier. The attacker can never get the code_verifier because it only ever travels the back channel. All the attacker can do is send the Authorization Code without a verifier, which the Authorization Server rejects.

Conclusion

The Authorization Server is where nearly all of OAuth’s complexity lives, and that is by design.

It registers clients, publishes its own metadata, authenticates users, hands out Authorization Codes, Access Tokens and Refresh Tokens, and more!

Every one of those steps paves the way for clients and protected resources to be as simple as possible, since there are more clients and protected resources than Authorization Servers.

This ends our deep-dive into the Authorization Server.
